Medium Duty Rotary (MDR) Valve

Based on a design with field proven success: the Medium Duty Rotary (MDR) valve delivers a more reliable and cost-effective solution to other valves in the targeted applications.

With the seat 3; and gate technology taken directly from our successful and field proven rotary gate valve design, our Medium Duty Rotary (MDR) Gate Valve is designed for specific applications where a more standardised and economic product is required.

The MDR delivers the same reliability and performance as our field proven rotary gate valve design with the economic benefit of a simplified design, whilst fully satisfying the requirements of API 6A and 17D.

The valve has been designed with panel mounted applications in mind, including hydraulic control and test lines on XMTs, manifold panels and subsea distribution units where needle and ball valve products are conventionally used – but where a metal sealing gate valve provides increased reliability to suit the customers’ needs, without the need for additional expense.

     DETAILS:

  • ½” nominal bore size
  • Compact design
  • Metal to metal gate to seat
  • FF trim
  • Dual stem seal
  • ROV interface

     QUALIFICATIONS:

  • Qualified to a pressure rating of 15,000psi
  • 3,048m (10,000ft) water depth
  • Qualified in accordance with API 6A 20th edition and API 17D 2nd edition
  • Temperature range: -29°C to 82°C

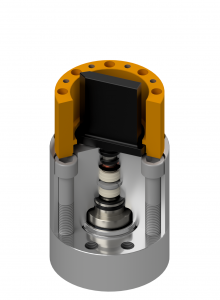

Hi res MDR LBB 22900 2000 X 2000 (002)
